UFS250
RM 338.00
Highlight

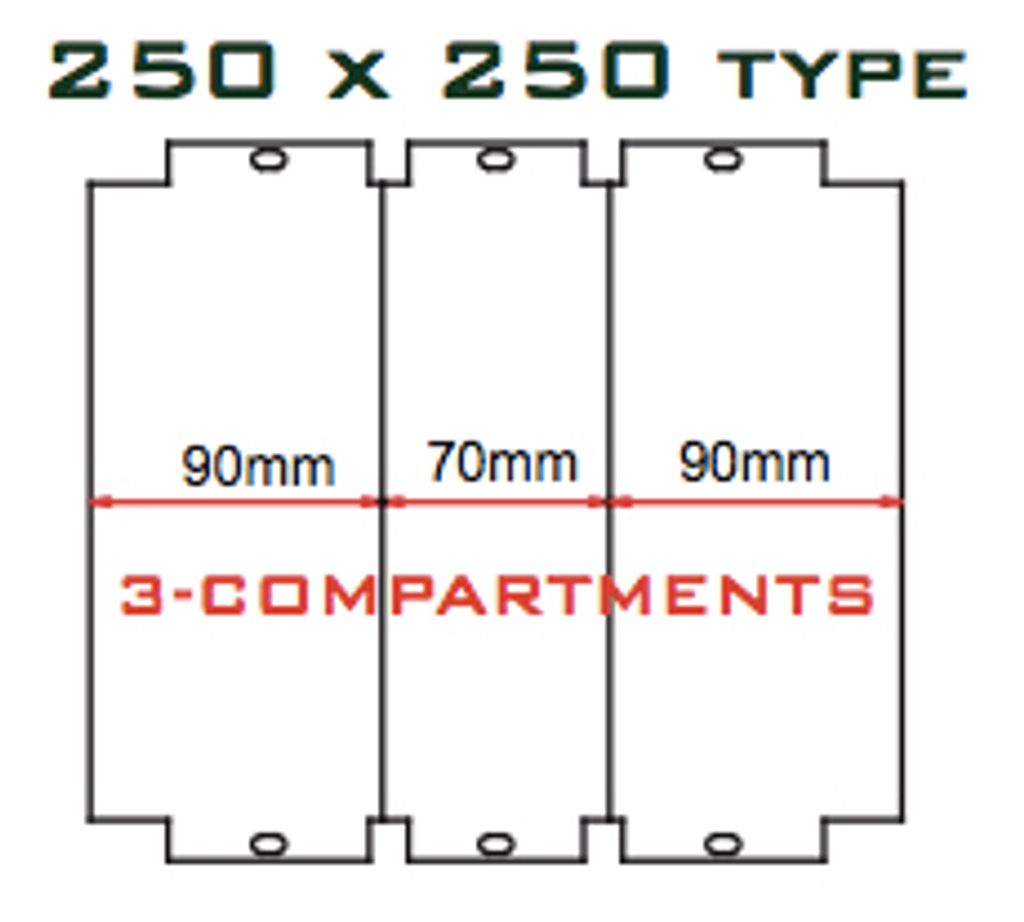

- Service Box comes with 3 nos. of Outlet Panels:-
- OP90103 (Side) - Cut-out in accordance to BS4662 2 x 1G (Customer to ensure screeding depth is more than 65mm excluding floor finishing of 9mm or 20mm if using BS socket type)
- OP90434 (Side) - Cut-out in accordance to Davis 1G 13A Davis Switched Socket Outlet (Add on Socket from Accessories)
- OP70C05 (Centre) - 4 nos. Cut-out RJ45 37 x 22.5mm (Add on RJ45 from Accessories)
- Stainless Steel 9mm or 20mm recess for various floor finishes.
- Service Box trap and frames are made from 1.5mm SUS304 stainless steel sheets with 3.0mm pre-galvanized steel sheets infill plates.
- Standard levelling screws and L-brackets are included.
- Entitled for Free Shipping.
Specification
| Brand | Davis |
| Model | UFS250/3/25/SS/9 or UFS250/3/25/SS/20 |
| Type | 250 x 250 x 25 (mm), 3 Compartment Heavy Duty Underfloor Service Box |
| Color | Fair Grey |
| Product Description | UFS250 Service Box, 3 Compartment, Stainless Steel, 9mm or 20mm recess |
| Weight (kg) | 5.9 (±0.1) |
| Product Size (cm) (Length x Width/Depth x Height) | 25 x 25 x 5.6 |
| Package Size (cm) (Length x Width/Depth x Height) | 34.2 x 34.2 x 7.0 |
| Warranty Period | 30 days |
