TF370

RM 105.00

Highlight

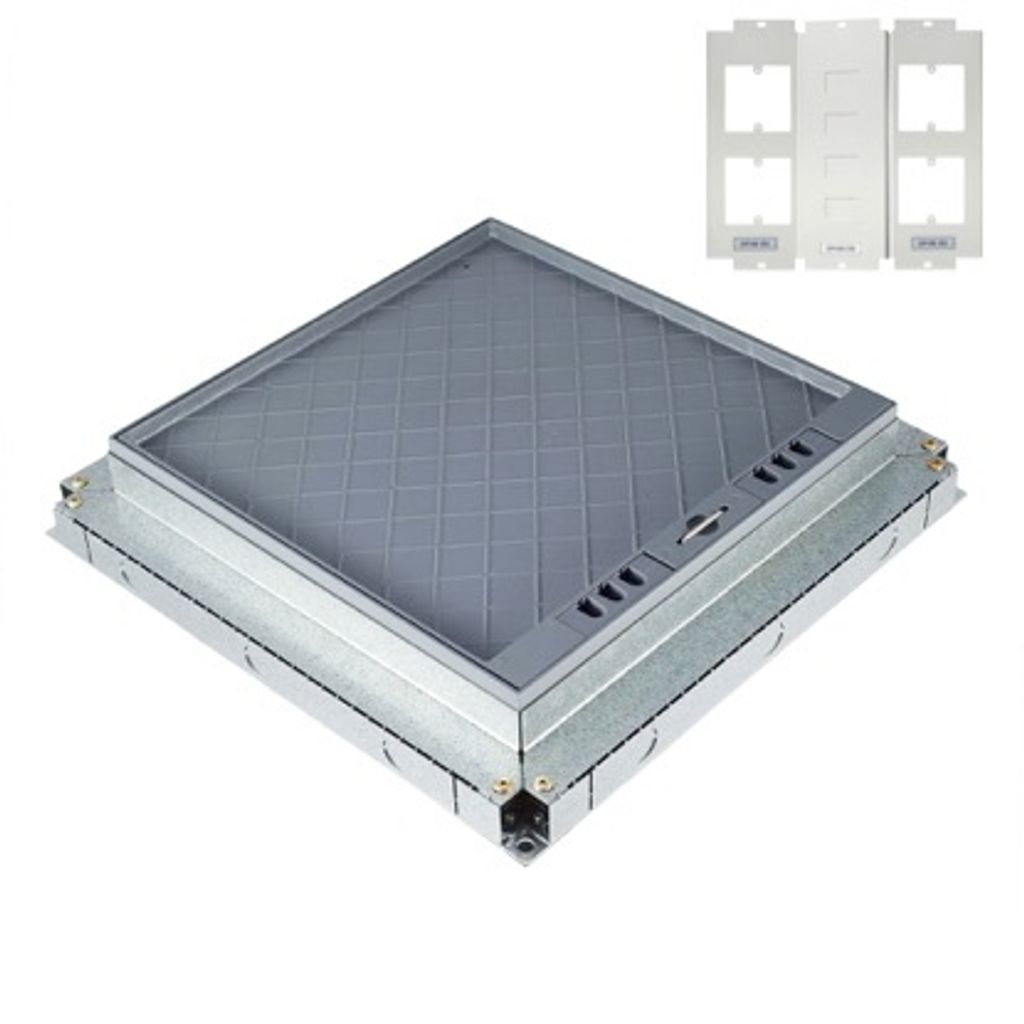

  • Service Box comes with 3 nos of Outlet Panel:-
    • OP100103 (Side) - Cut-out in accordance to BS4662 2 x 1G

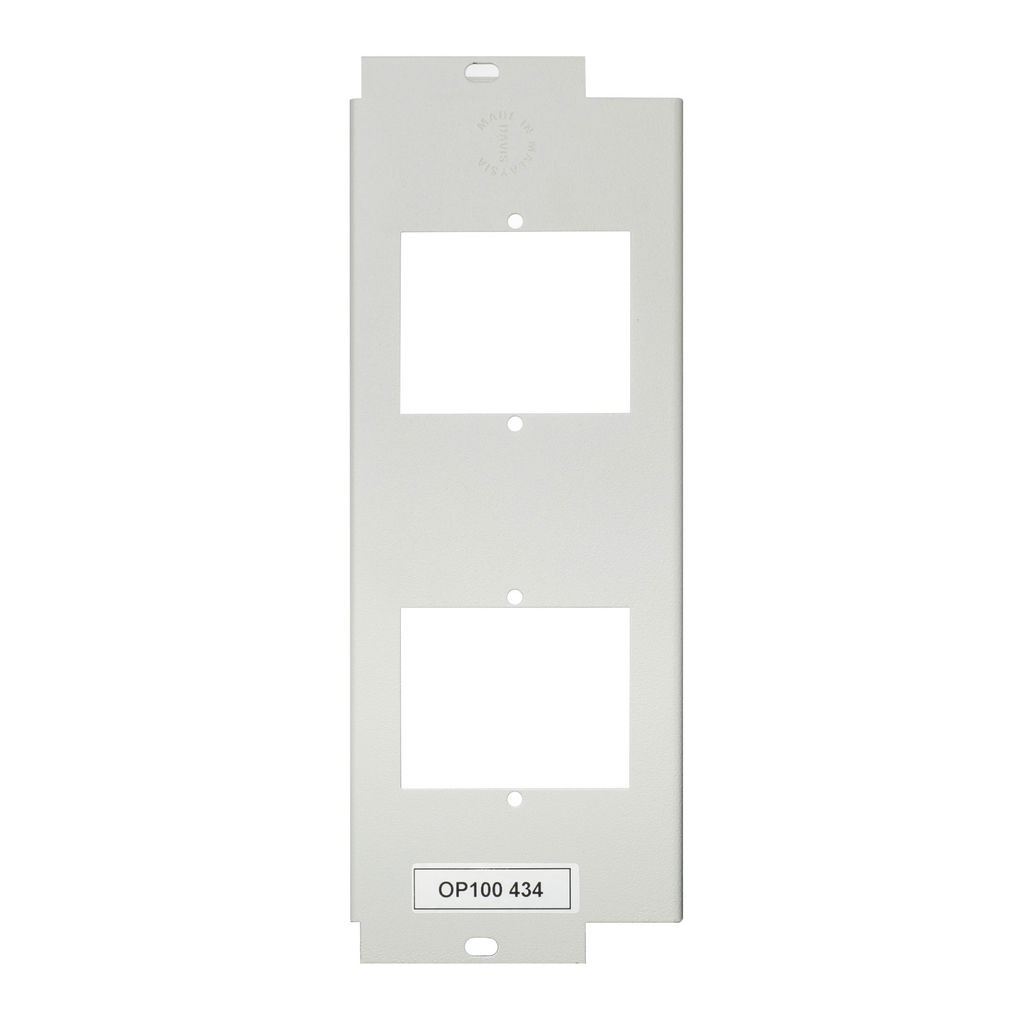

    • OP100434 (Side) - Cut-out in accordance to Davis 2 x 1G 13A Switched Socket Outlet
    • OP100C05 (Centre) - 4 nos. Cut-out RJ45 37 x 22.5mm
  • Die-cast alloy 9mm recess for various floor finishes.
  • Service Box trap and frames are made of high pressure die-cast alloy
  • Standard levelling screws and L-brackets are included

Specification

BrandDavis
ModelTF370/3/25
Type 300 x 300 x 25 (mm), 3 Compartment Underfloor Service Box
Colour Grey
Product DescriptionTF370 Service Box, 3 Compartment, Die-Cast Alloy, 9mm recess
Weight (kg)5.6 (±0.1)
Product Size (cm) (Length x Width/Depth x Height)30 x 30 x 5.6
Package Size (cm) (Length x Width/Depth x Height)
39.2 x 39.2 x 7
Warranty Period30 days
